fischer Sleeve Anchor FH II B with Threaded Bolt

From: £122.71



Size guide – The first number refers to the drill diameter. The second number refers to the maximum fixture thickness.

Clear

Estimated Dispatch Time: In stock – 1-3 working days

Product Description

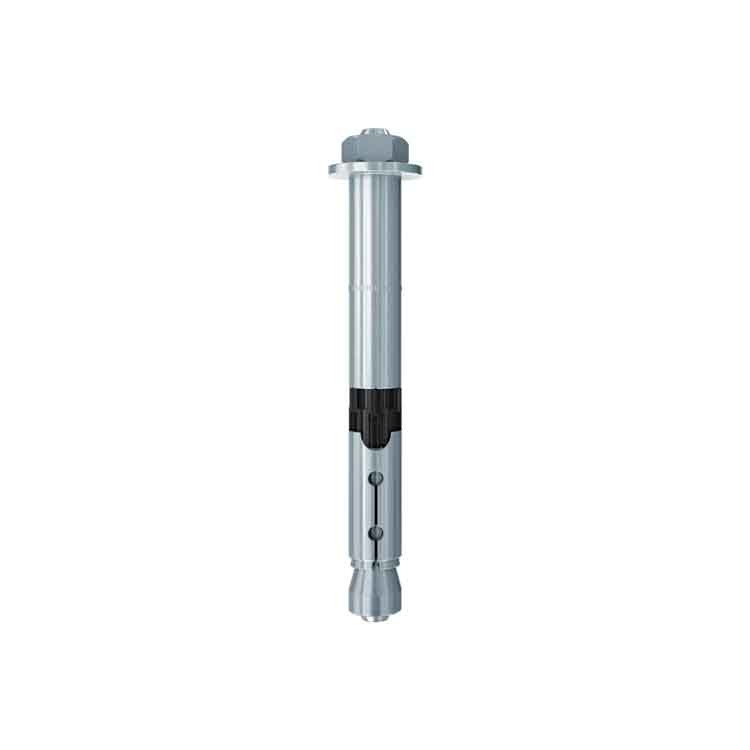

The fischer high-performance anchor FH II B with threaded bolt is a sleeve anchor made of zinc-plated steel. The anchor is set in the time-saving through-type installation. When tightening the anchor, the cone is pulled into the expansion sleeve and expands it against the hole wall. The black plastic ring prevents the anchor from rotating and absorbs the torque slippage. This means that the fixture is pulled towards the anchoring base. The fischer high-performance anchor FH II B with threaded bolt is ideally suited to fix railings, steel constructions, and cable trays in cracked and non-cracked concrete.

fischer Sleeve Anchor FH II B Advantages

  • The international approvals guarantee maximum safety and the best performance. The European Technical Assessment even cover use in earthquake zones (seismic C1 and C2).
  • The practical fixing using washers and nuts allows for the ultimate removal of the attachment if required later.
  • The design between the bolt and the sleeve ensures high shear load-bearing capacity. Thus, fewer fixing points are required.
  • The optimised geometry intelligently reduces the energy required for assembly.
  • The approval regulates the use of hollow drills.

fischer Sleeve Anchor FH II B Functioning

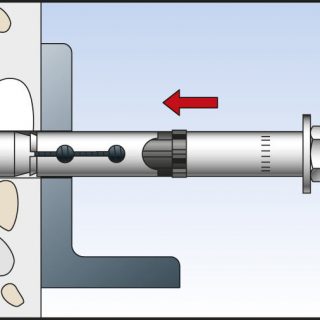

  • The FH II is suitable for push-through installation.

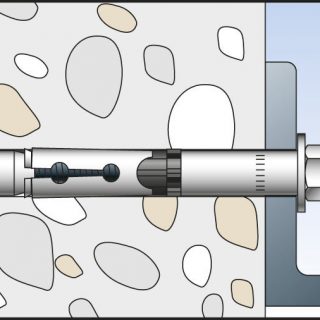

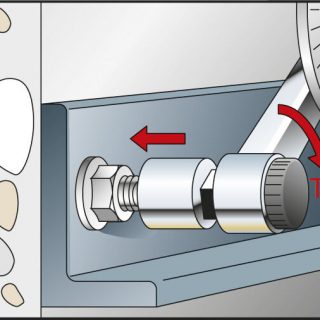

  • When applying the torque, the cone is pulled into the expansion sleeve and expands it against the drill hole wall.
  • The black plastic ring prevents rotation when tightening the anchor, and acts as a crumple zone to take the torque slippage so that the fixture is pulled onto the anchor base.
  • Available head shapes for flexible design solutions:
    Countersunk head (type SK), hexagon head (type S), bolt version with nut and washer (type B) and cap nut (type H).

Building Materials

Below are some examples of installation for the fischer Sleeve Anchor FH II S within different wall types.

Approved for:

  • Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

  • Concrete C12/15
  • Natural stone with dense structure

Applications

Guard rails | Staircases | Consoles | Steel constructions | Ladders | Cable trays | Machines | Gates | Façades | Gratings

Installation Examples

Below are some examples of installation for this product within different wall types. If you are unsure of what type of wall you may have then please see our guide on What Type of Wall Do I Have?

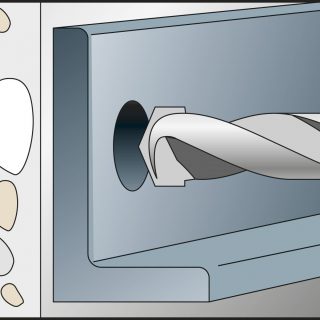

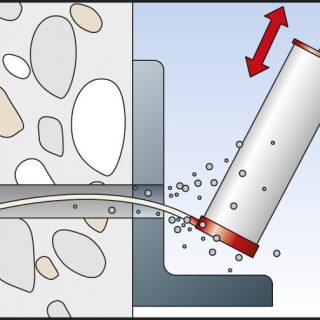

Concrete Installation

fischer Sleeve Anchor FH II Load Ratings

fischer Sleeve Anchor FH II ICC ES Evaluation Report

fischer Sleeve Anchor FH II Declaration of Performance

fischer Sleeve Anchor FH II European Technical Assessment
