Multi Wall Floating Shelf Bracket Replacement Components

From: £0.20

Sold individually, price is per component.



Estimated Dispatch Time: 1-2 working days



Product Description

Here you can find the individual components for our Multi Wall Concealed Floating Shelf Bracket. This can be useful if you would like to order additional or replacement parts to cover breakages or alterations during installation.

The barrels are designed to be interchangeable. So for example, if you order plasterboard fixings but during installation realise that the wall is actually dot and dab, you can simply swap out the plasterboard threads and plugs for the dot and dab variations, keeping the same barrels (and washers). If you wish to use our barrels with your own threads and plugs, please note the hole size in the barrel is M6.

Please note that these are not complete fixings and are parts that are sold individually. For complete brackets please see our Multi Wall Concealed Floating Shelf Bracket.

All our shelf fixings are of our own design and they are made solely for BespOak Interiors. Consequently they are only available to buy direct. Please contact us for information on bulk pricing options for any of the fixings in our range. Are you unsure of which invisible shelf bracket might be best for your application? Then don’t hesitate to contact us and we should be able to advise you.


Solid Wall

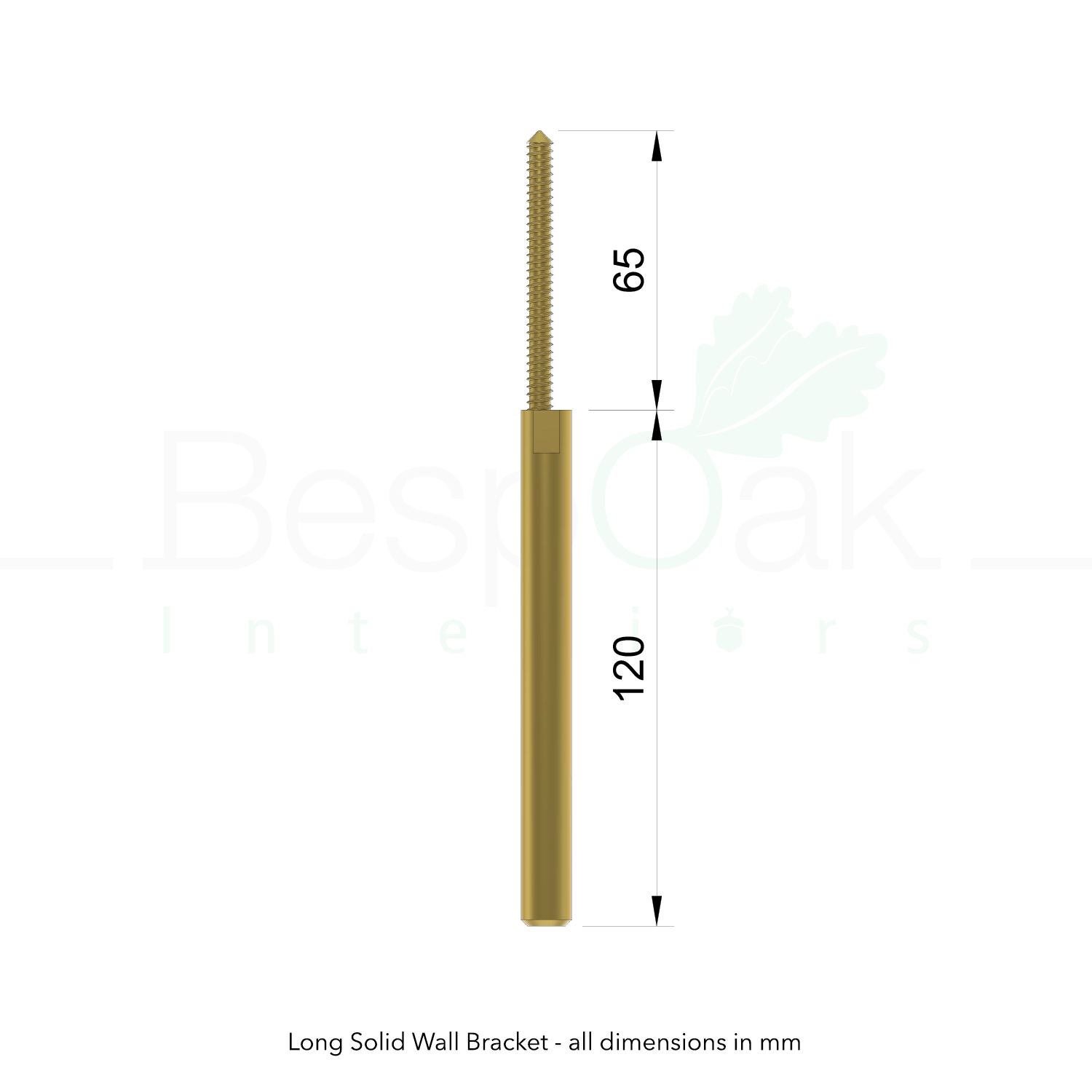

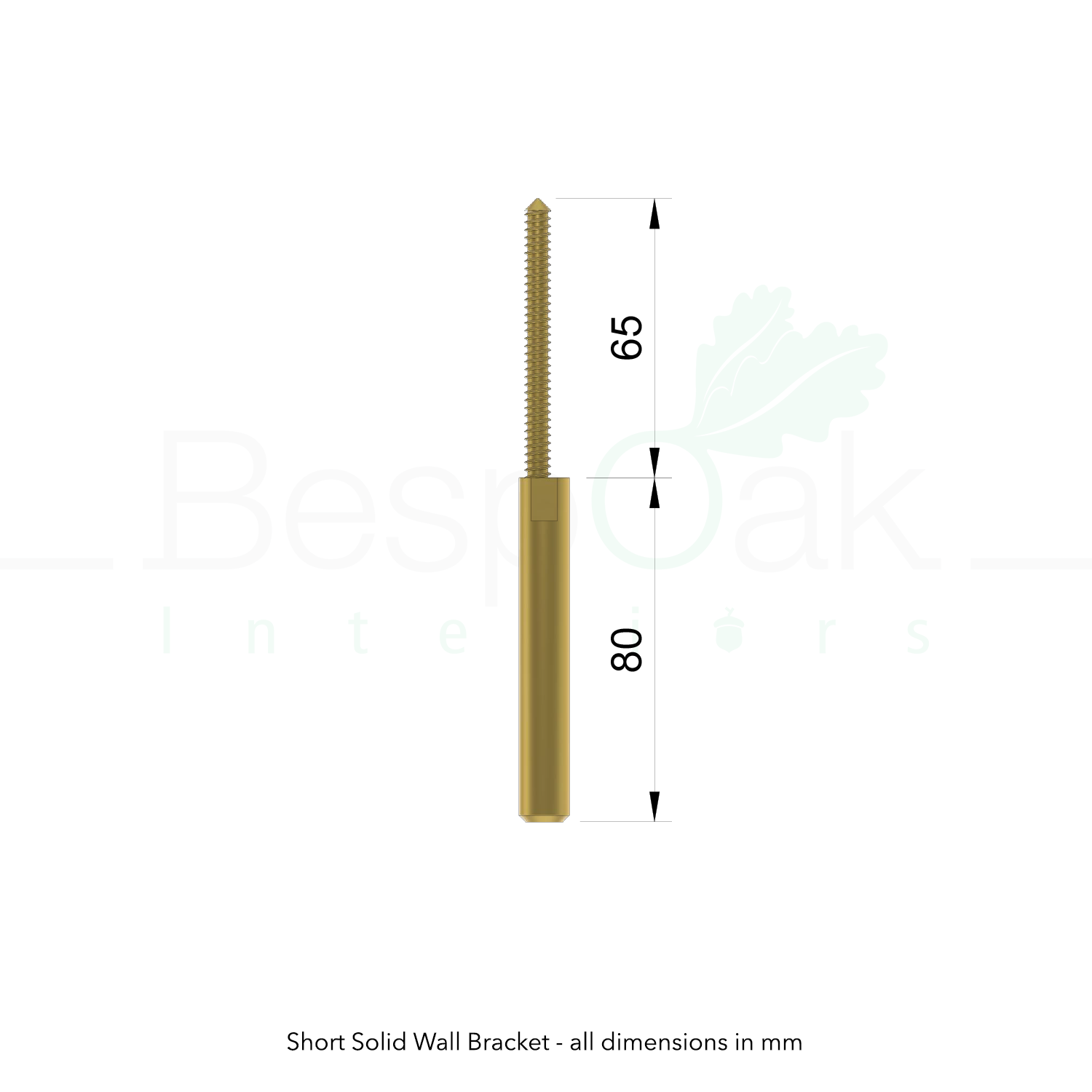

The solid wall floating shelf bracket has a 65mm thread section and comes provided with a high quality Fischer wall plug. To install this fixing you will require a 10mm Masonry Drill Bit for the wall and a 12mm Auger Bit for the shelf.

Max shelf depth: 250mm
Max weight per bracket: 10kgs
Min fixing qty: 2 per/m (3 per/m for 250mm depth)


Dot and Dab Wall

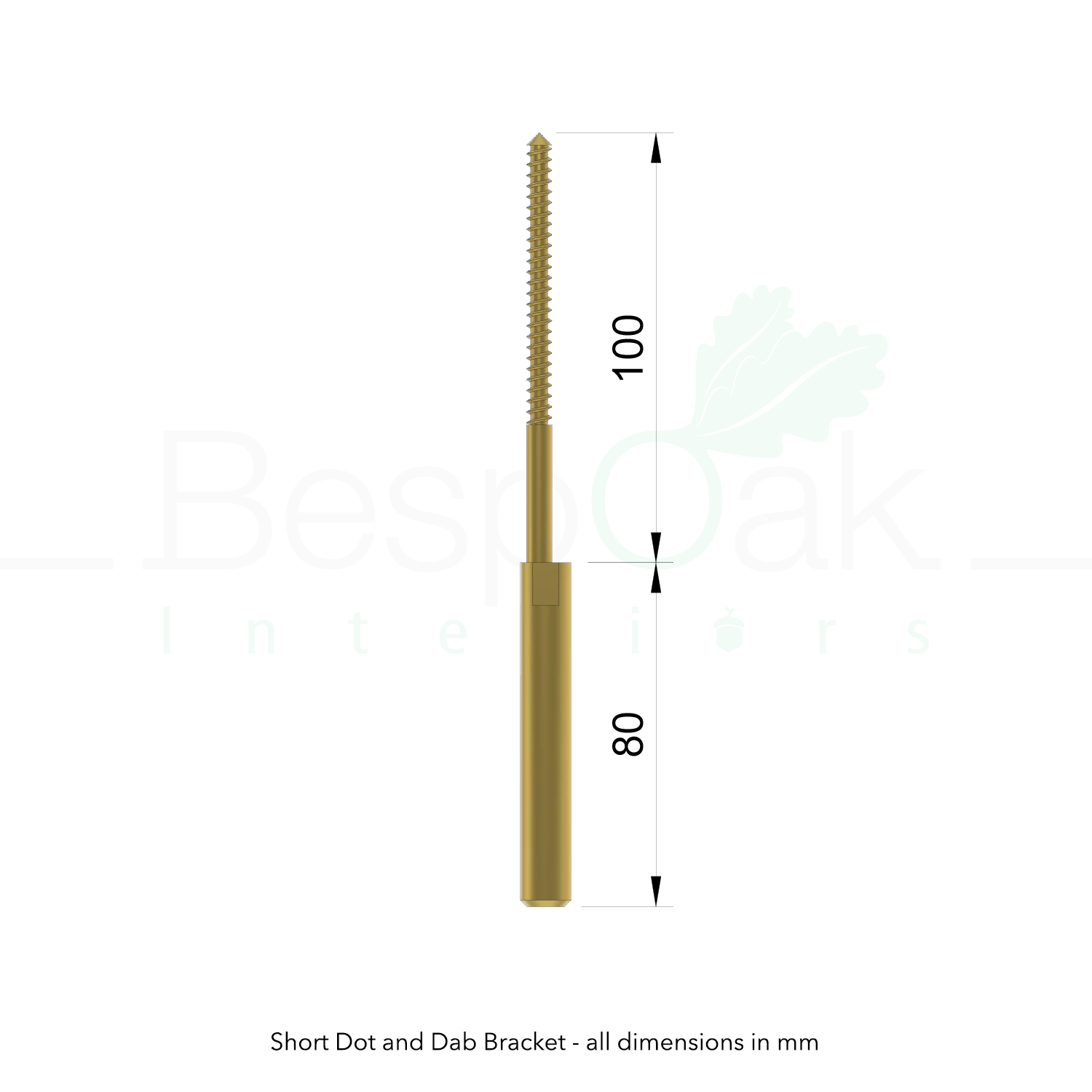

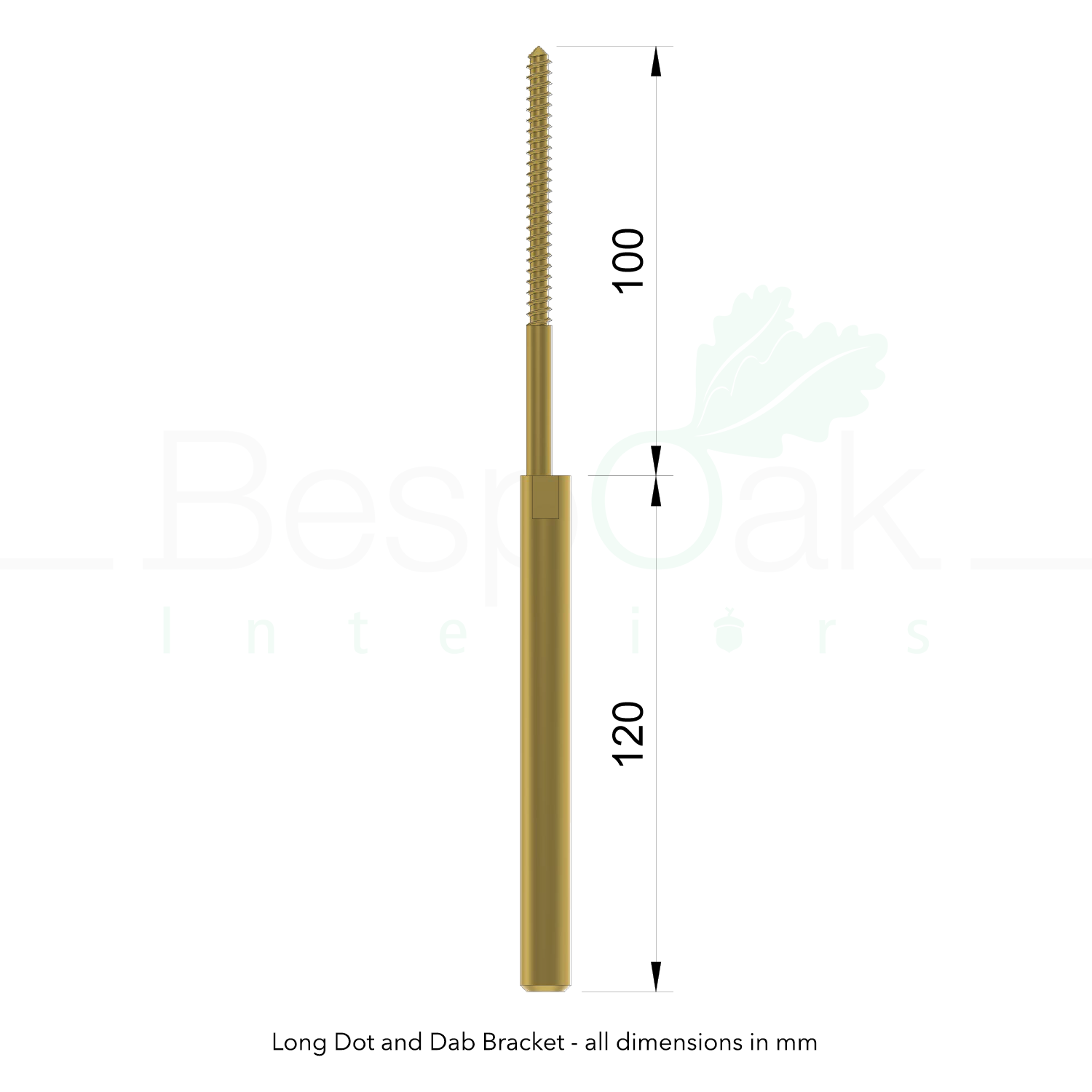

The dot and dab wall invisible shelf bracket has a 100mm thread section for an increased reach into the solid portion of dot and dab walls. This bracket comes provided with a high quality Fischer wall plug. To install this fixing you will require a 10mm Masonry Drill Bit for the wall and a 12mm Auger Bit for the shelf. To increase to weight per bracket to that of the solid wall bracket, we recommend that the wall is strengthened at the fixing point using Fischer Chemical Resin. For more information on this please contact us.

Max shelf depth: 250mm
Max weight per bracket: 8kgs
Min fixing qty: 2 per/m (3 per/m for 250mm depth)


Plasterboard Wall

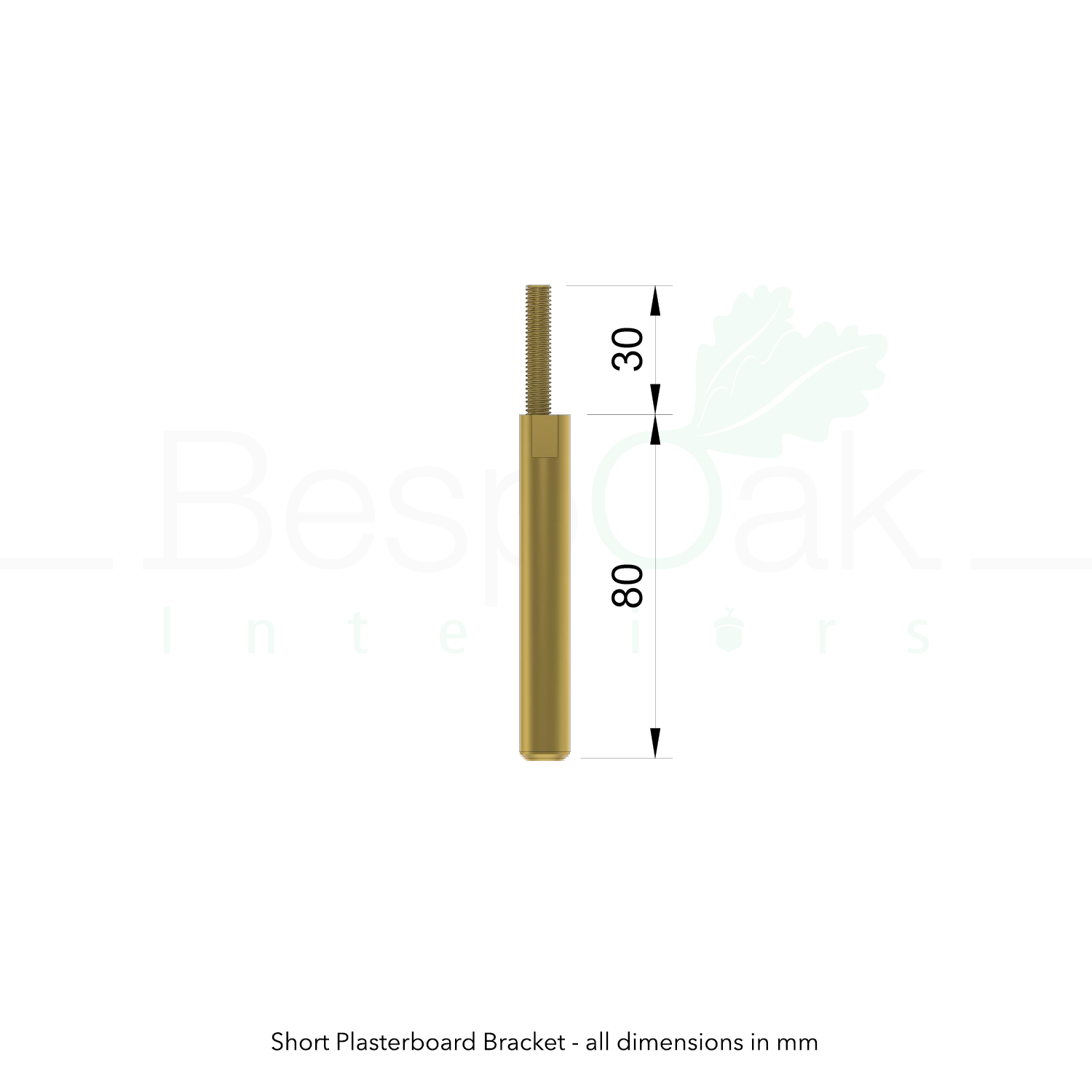

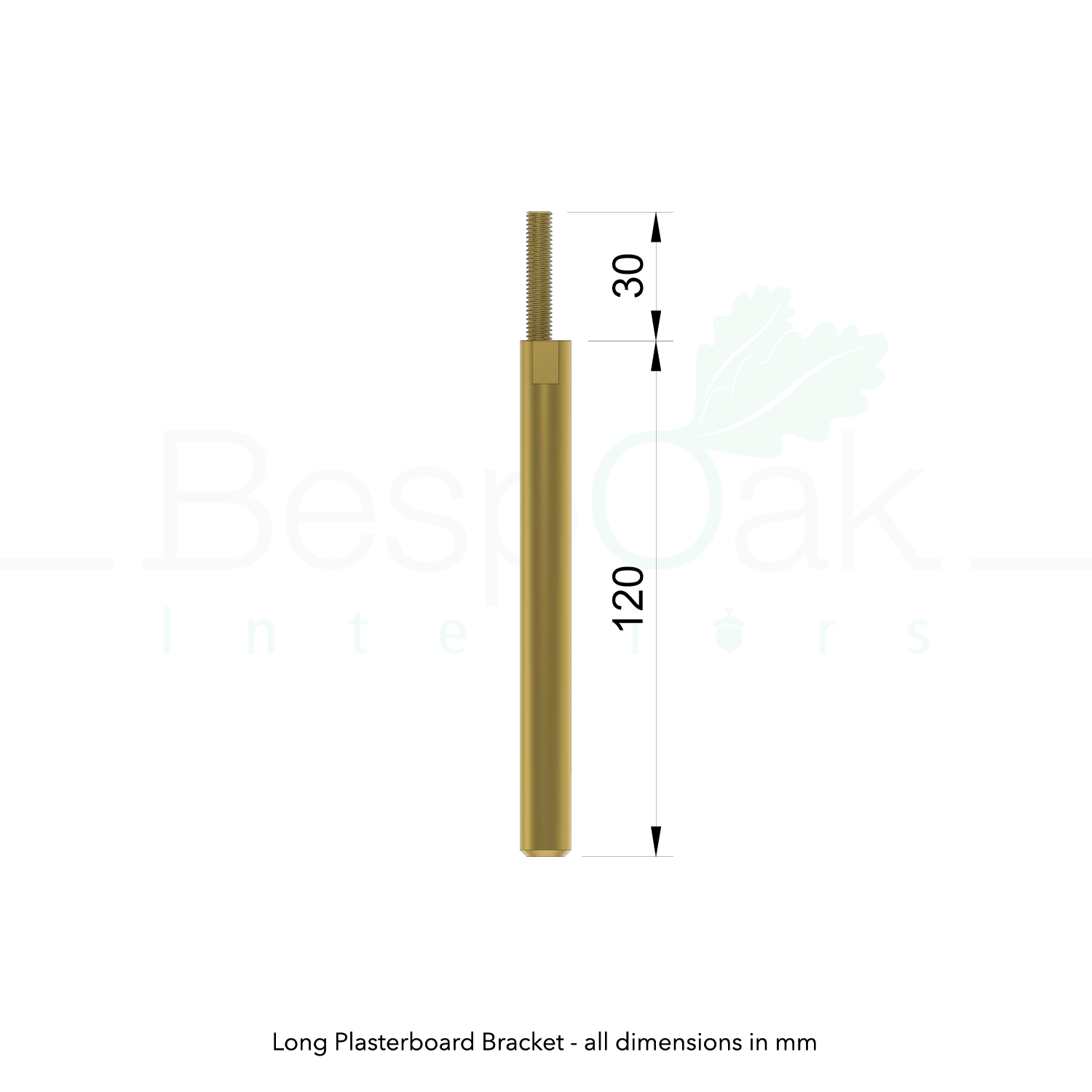

The plasterboard wall shelf bracket comes with a high quality, high strength Fischer Duotec fixing. This allows for securing into plasterboard or any cavity/panel material between 12 and 35mm thickness. To install this fixing you will require a 12mm drill bit for the wall and a 12mm Auger Bit for the shelf.

The plasterboard thread is also suitable for securing into timber stud work (with or without using the Fischer Duotec plug), should you hit any studs when drilling into the plasterboard.

Max shelf depth: 150mm
Max weight per bracket: 6kgs
Min fixing qty: 4 per/m


What Type of Wall Do You Have?

If you are unsure what type of wall you have, check out our blog post what type of wall do I have? For some tips and advice on how to identify your wall type. Alternatively you can contact us for further advice.

Specification

Below you can find our recommended drilling profiles for various different shelf configurations.

200mm Solid Wall Floating Shelf Drilling Profile Drawing.pdf

150mm Plasterboard Wall Floating Shelf Drilling Profile Drawing.pdf

150mm Solid Wall Mantel Drilling Profile Drawing.pdf

Delivery
This product is available with UK and Republic of Ireland delivery and this will be calculated based on weight and location at the checkout. For more information on delivery please see our Delivery Page.

Returns
This item can be returned for a refund within 30 days of receipt, providing it has not been used. Please email us directly if you wish to return any hardware item. For full details please see our Terms and Conditions.
